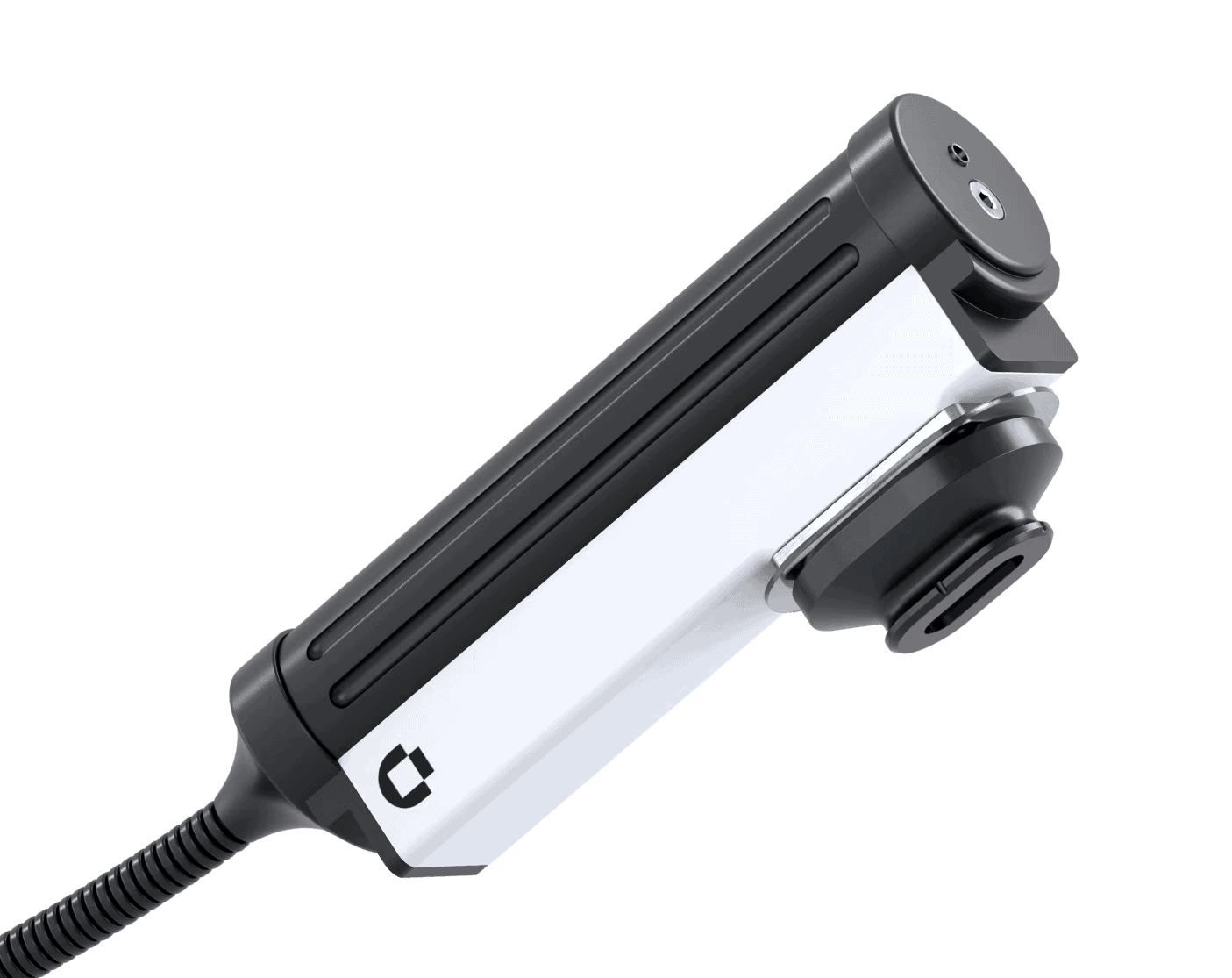

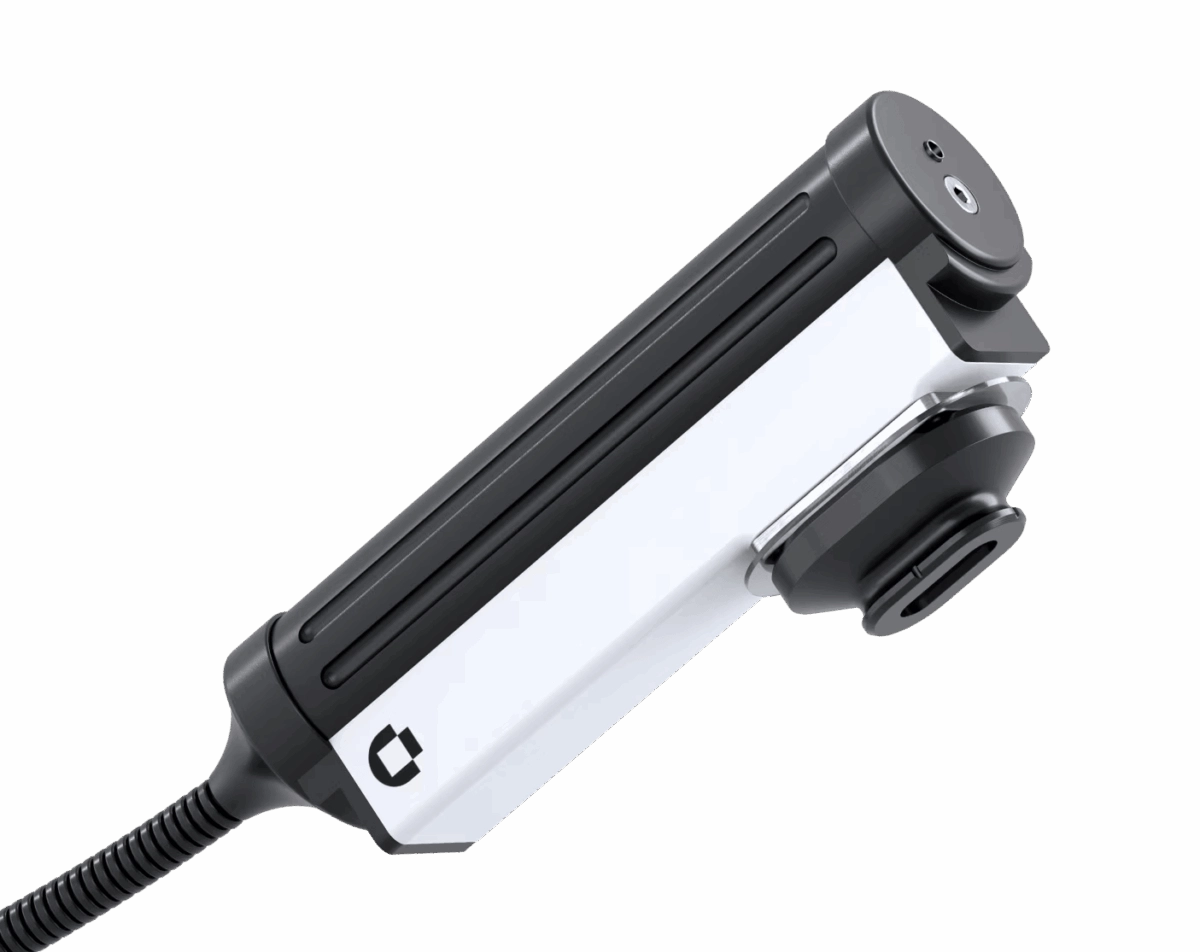

DermaScan
Description
Get under the skin –
Advanced skin ultrasound
The DermaScan features realtime scanning, high resolution and software for advanced skin ultrasound imaging analysis.
All DermaScan configurations are built to provide optimal reliability and meet the latest international standards and safety requirements.
Decades of scientific use
For decades the DermaScan has been used in a broad range of research studies, clinical applications as well as Product R&D.
It has been developed for the specific purpose of providing high resolution ultrasound images of the skin and underlying soft tissue.
The DermaLab Single is delivered with laptop and software.
50MHz
Selection of broadband transducers: 20/50 MHz
100 images
Automatic cineloop
Recording of 100 images
For general purpose skin scanning we recommend a 20 MHz transducer providing a 60 by 150 micron resolution and in-depth penetration of 14 mm or 60 by 200 micron resolution and 23 mm penetration. For ultimate resolution and image definition a 50 MHz broadband option provides a 30 by 60 micron resolution and 7 mm max penetration.
Specifications
| Real-time scanning at 6-8 frames per second |
|---|
| A/B-mode scanning |
| Selection of broadband transducers from 20 – 50 MHz |
| Swept gain adjustment of both level and profile |
| Autosave function |
| Resolution: 60 by 150 micron @ 20MHz, 14 mm max. penetration | 60 by 200 micron @ 20MHz, 23 mm max. penetration | 30 by 60 micron @ 50MHz, 7 mm max. penetration |
| Zoom and scroll feature |
| Automatic cineloop recording of 100 images |
| Tiff and jpg format conversion |
| Storage of individual images as well as complete cineloop |

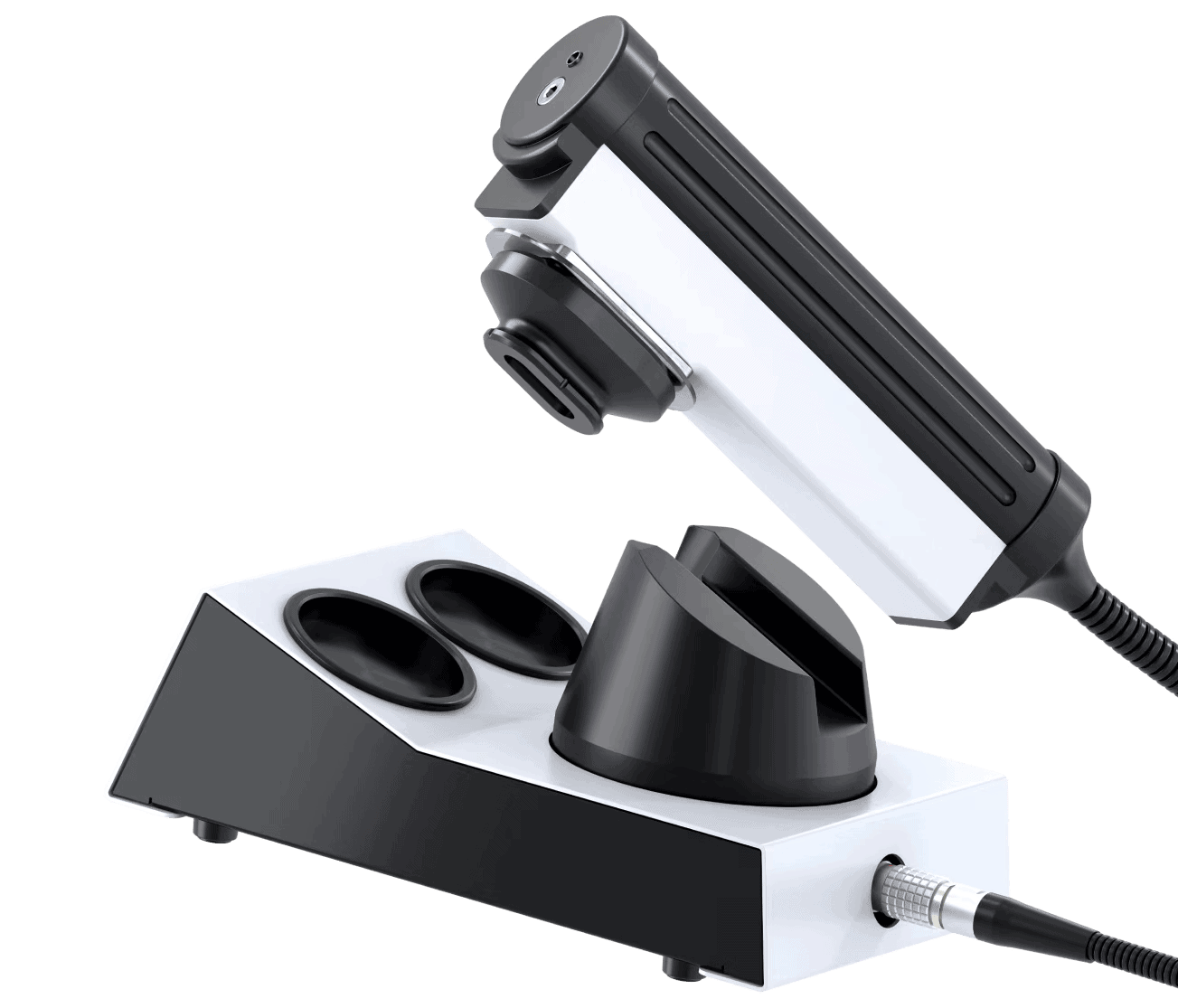

| Probes with closed water chamber |
| Windows based user interface |
| Advanced measurement functions including ROI, edge detection and intensity segmentation |
| Safety: Complies with international safety regulations and quality standards incl. EU and FDA requirements. |
| Power requirements: Line voltage 100-240 VAC, 50/60 HZ. Power consump. max. 120 W. |
| Environment: Operating temp. 10-40 °C. Humidity 10-90% RH non-condensing. |
| Warranty: 1 year. Extended upgrade and warranty program available. |
