Endoscopic cameras are commonly used equipment in endoscopic and minimally invasive surgery.
However, the traditional endoscopic camera system is usually bulky, which is not convenient in the outpatient clinic or working in different locations.
When receiving patients in different locations, you can take a handy camera with you at all times.

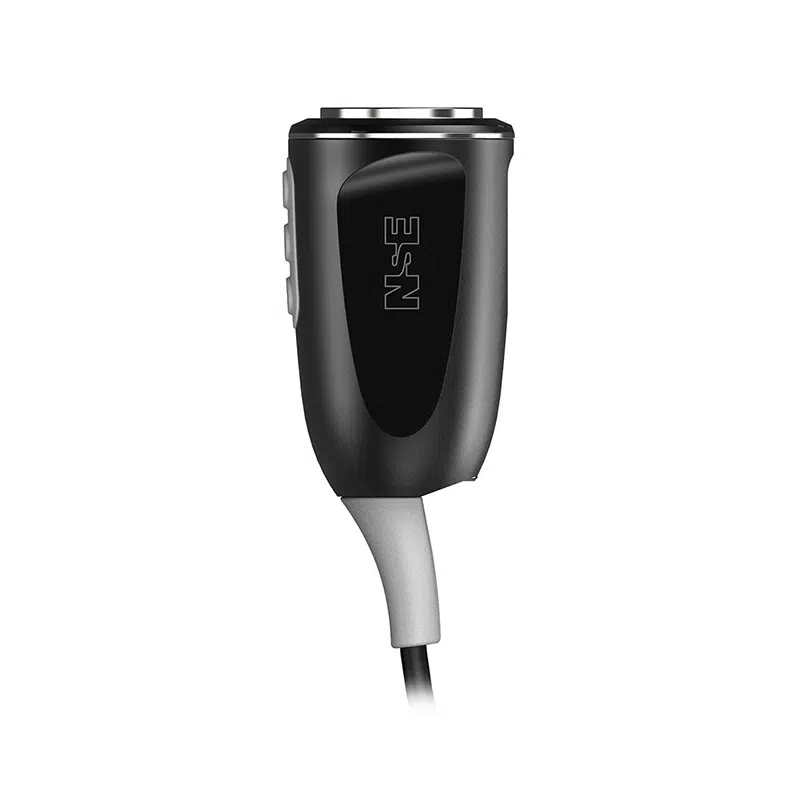

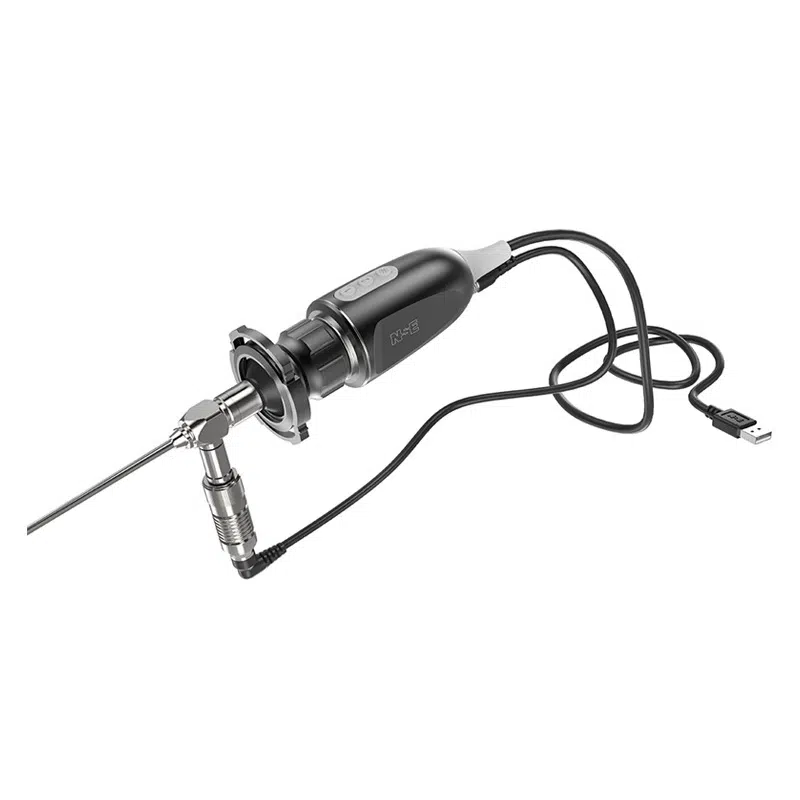

The USB FHD endoscopy camera system was developed by North-Southern Electronics Limited to meet the above requirements.
It is an original product integrating lighting, recording, device control and patient management with high image quality and mobility.
This product meets the requirements of disinfection by soaking and plasma sterilization.
When connected to a computer via USB3.0 interface, endoscopic procedures, examination and recording can be carried out.
With the video recording and transmission capability developed by NSE, video transmission can be realized.
Extremely high resolution
Precision diagnostics.
Integrated, lightweight and portable
Diagnostics and treatments right out of the box when connected to the computer's USB3.0 port
Waterproof, autoclavable
Sterilizable.
- CMOS sensor
- Resolution: 1920×1080, 30 fps
- USB3.0 interface for high-speed transmission of Full HD video
- Integrated light source, no need for n other light sources
- C-mount interface for various optical adapters on the market
- Only one USB cable, so you only need to connect
- IP58 dust and waterproof protection
- Configuration with MedCam software for control, imaging and report generation
- Weight: 200 g
- Detachable, waterproof light source
- Robust connection, with a fastener to prevent accidental pulling off
- 5W LED
- Max.
light intensity: 282,000 lux - Color temperature: 5700k
- Lifespan: 20,000 hours
- Cable length: 500 mm
- Ability to set buttons for shooting, recording, stopping, zooming in and out
- 5 levels of light intensity control, white balance adjustment
- Supported by MedCam software
- Patient management system
- Survey reports
- DICOM-compatible
- Multilingual (10 languages)
- Compatible with Microsoft Windows and Mac OS X systems
Minimum configuration:
- USB3.0 port
- Microsoft Windows 10, 8, 7 or macOS Catalina
- 4.0G RAM, i5 core
Recommended configuration:
- USB3.0 port
- Microsoft Windows 10, 8, 7 or macOS Catalina
- 8.0G RAM, i7 core
- Screen: 1920×1080
