BIPOLAR AND MONOPOLAR TECHNIQUES

You can use Eltron instruments both in the classic monopolar mode, using a passive electrode, and in bipolar mode, where current flows between the two poles of the bipolar tool.

Bipolar tweezers

ENT electrodes

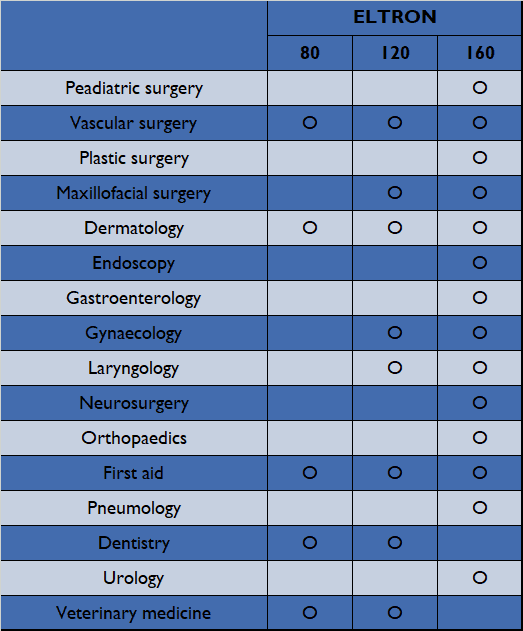

APPLICATION

MODES OF OPERATION

PURE CUT (CUT)

The best current waveform for cutting is a pure sinusoidal waveform without modulation. Using this mode, we get a cut without coagulation.

COAGULATING CUT (WITH HEMOSTASIS) (BLEND)

Cutting current with coagulation (BLEND) is suitable for cutting in these cases if deep coagulation is required simultaneously with cutting. This type of waveform is a combination of sinusoidal current for cutting and a low-voltage waveform suitable for coagulation. This results in a coagulating cut without carbonization of the tissue, particularly useful in endoscopy.

FORCIBLE COAGULATION (FORCED)

The modulated current of forcing coagulation has the ability to rapidly coagulate the surface, with the likelihood of partial tissue carbonization. The advantage of this mode of operation lies in the rapid coagulation effect on the treated area.

SOFT COAGULATION (SOFT)

The low-voltage and modulated waveform allows to achieve coagulation of deeper tissue layers, in which coagulation of cells is performed without carbonization. Soft coagulation is more time-consuming than forcible coagulation.

BIPOLAR COAGULATION (BIPOLAR)

This mode of operation is suitable for gentle coagulation without carbonization effect both monopolar and bipolar. The use of bipolar pliers is allowed only in this mode of operation. An optional adapter ( REF No. 00498.04) is required to enable connection of the bipolar tweezer cable, which prevents activation in another mode of operation.

DEDICATED SETS

DERMATOLOGICAL-SURGICAL

COSMETOLOGY

DENTAL

ACCESSORIES

A wide selection of top quality equipment

Handles and cables (5)

Trolleys (3)

Neutral electrodes (8)

Bipolar forceps (8)

Active electrodes (40)

SPECIFICATIONS

safety class: I CF,
power supply: 230V, 50Hz,
dimensions: 260 x 265 x 110 mm,
weight: 5 kg,
maximum pure cutting power: 80W,
maximum power at coagulation cutting: 60W,
maximum power for forcible coagulation: 50W,
maximum power for soft coagulation: 40W,
maximum power for bipolar coagulation: 30W,
600 kHz basic operating frequency.

GUARANTEE

Eltron products are covered by a two-year warranty, carried out by our service in Poland.

TRAINING

01.

First launch

After purchasing the device, you will get access to instructions and a video on how to use the camera for the first time

02.

Treatment training

If you need treatment training, check out our training tab

03.

Specialized training

Additional information

Set	Cosmetology, Dermatology-surgery, Manufacturer's, Dental
